Product Information

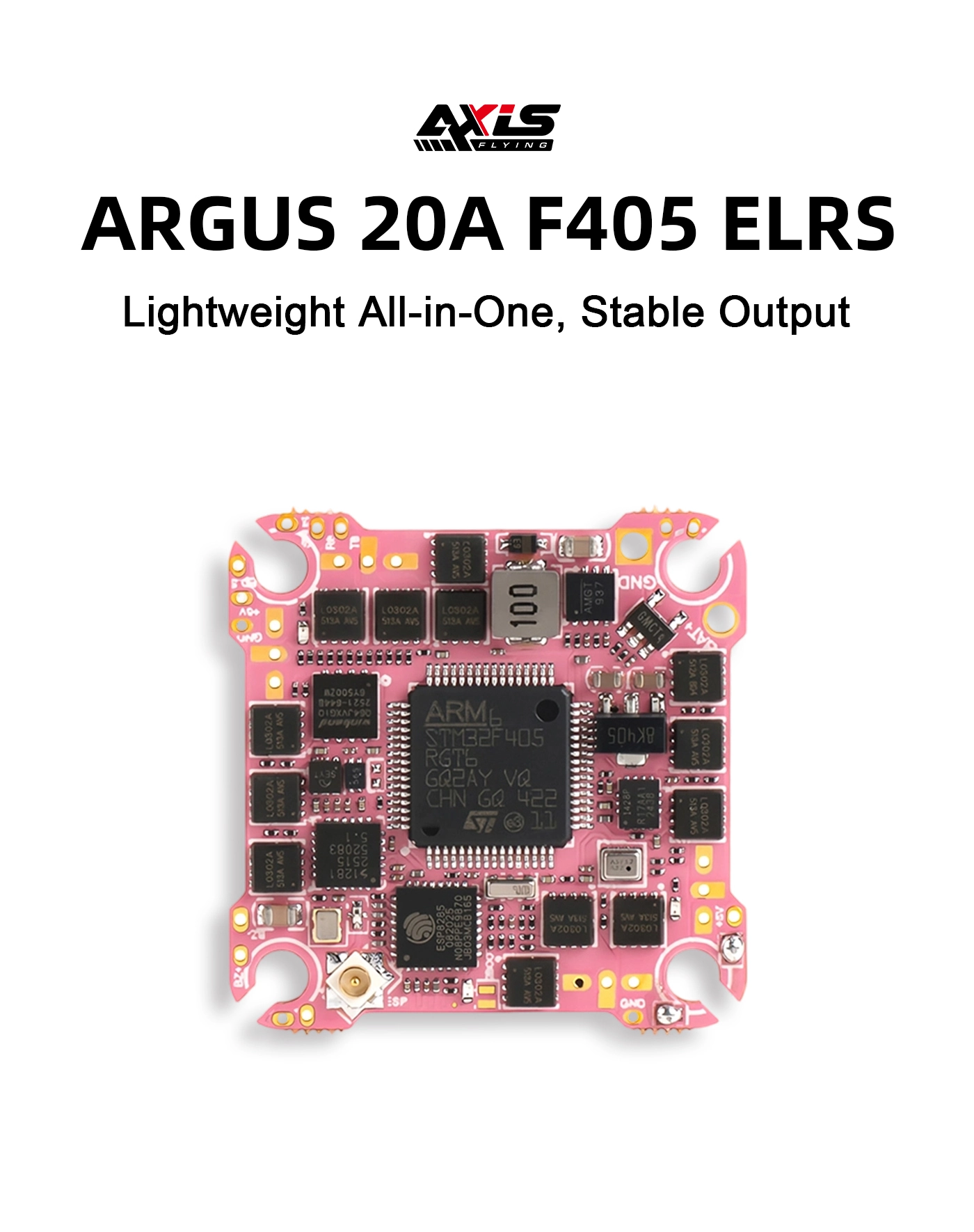

• Lightweight All-in-One, Stable Output
• 20A continuous current ESCs, meets mainstream power demands
• 4 UART serial ports, supports connection of multiple peripherals
• Integrated ELRS receiver for greater convenience
• Extremely lightweight only 6g

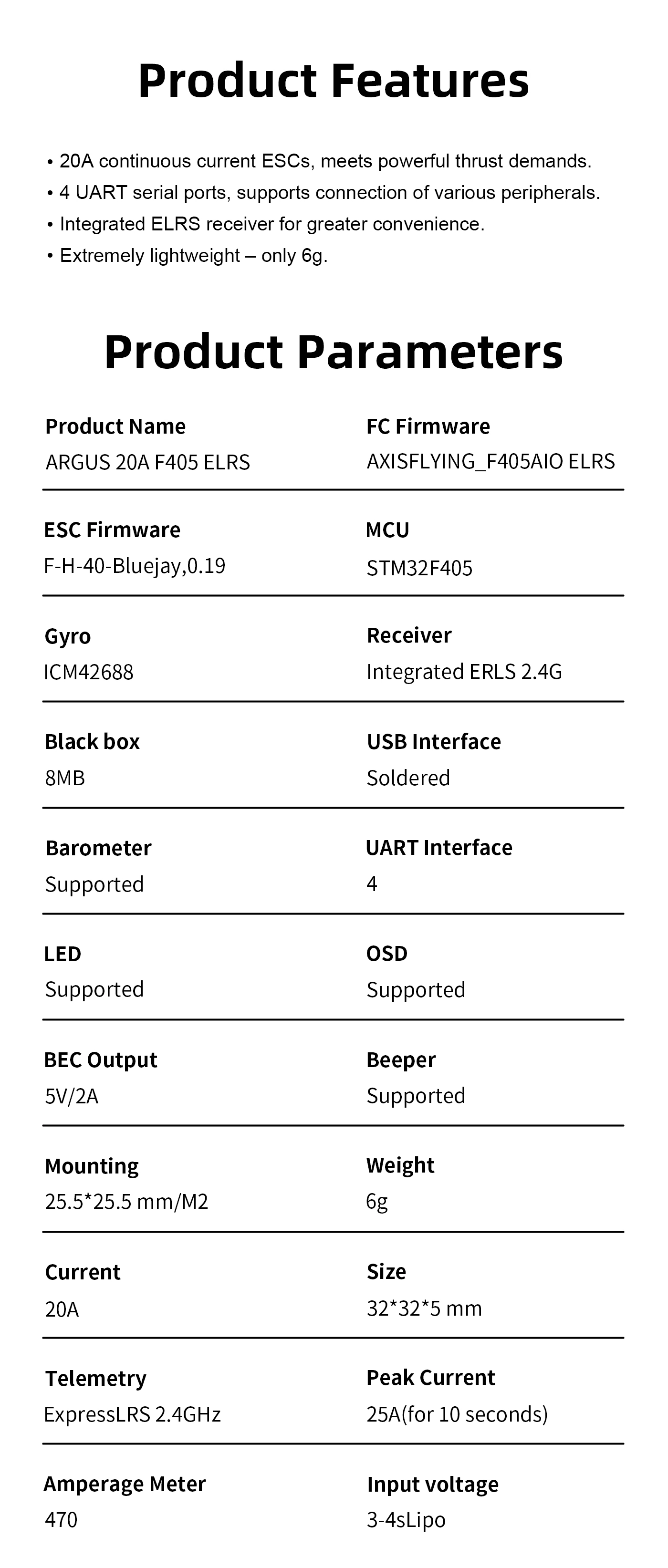

AIO Parameters:

• MCU: STM32F405
• Gyro: ICM42688• Receiver: Integrated ERLS 2.4G
• USB Interface: Soldered
• Blackbox: 8MB
• UART Ports: 4
• Barometer: Supported
• OSD: Supported
• LED: Supported
• Buzzer: Supported
• BEC Output: 5V/2A

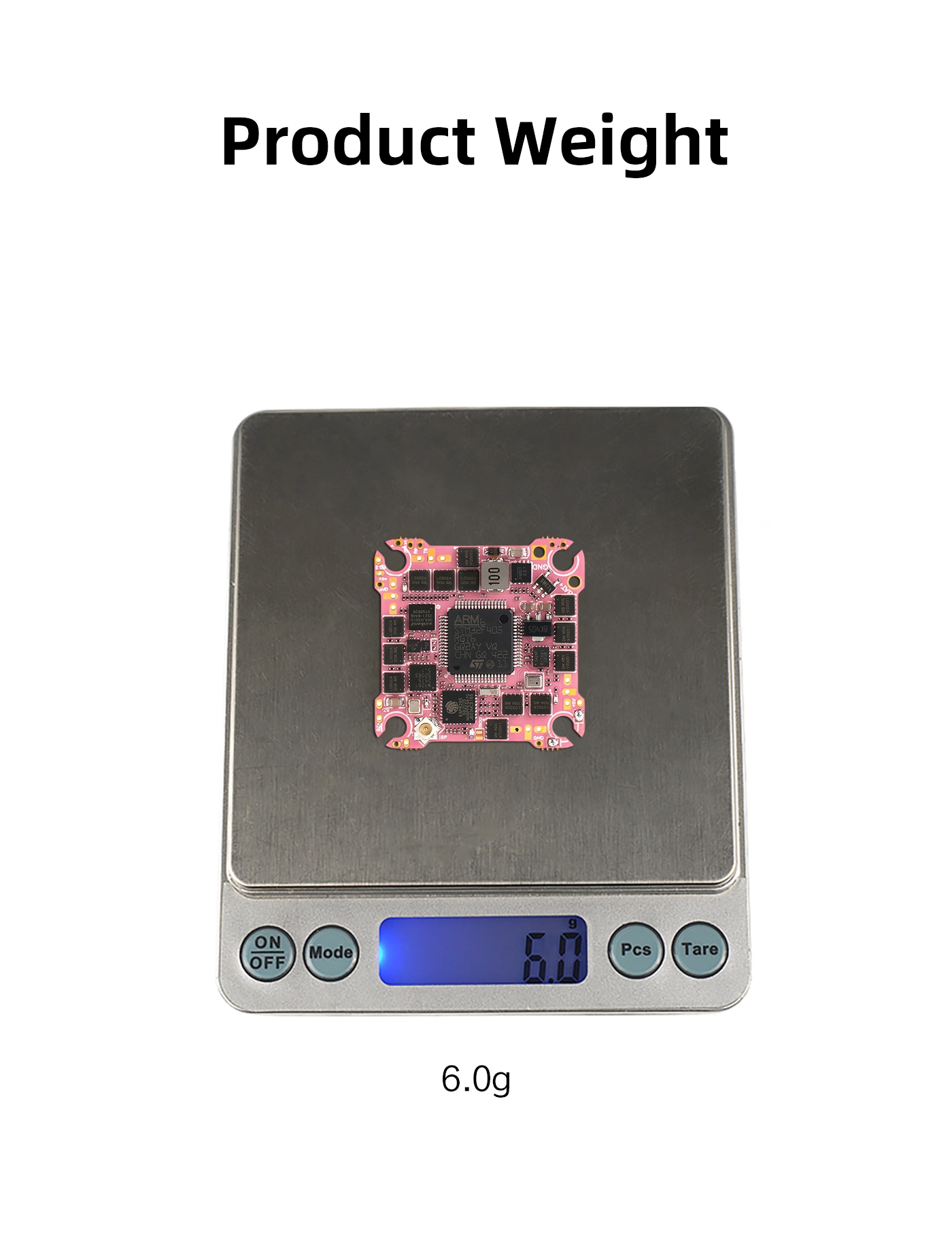

• Weight: 6g

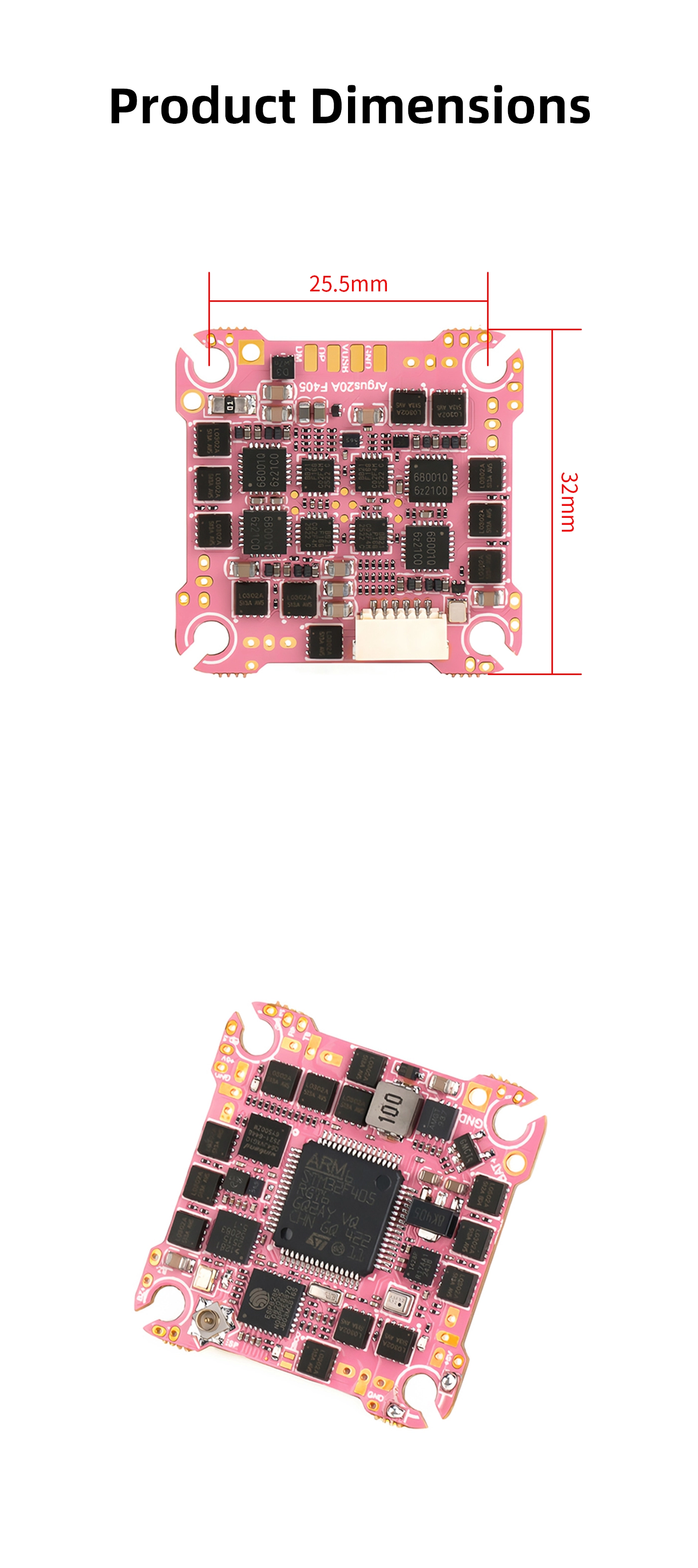

• Mounting Hole Pattern: 25.5×25.5mm
• Dimensions: 36×36 mm
• Continuous Output Current: 20A
• Peak Current: 25A (10 seconds)
• Telemetry: ExpressLRS 2.4GHz
• Input Voltage: 3S-4S
• Current Scale: 470
• Local Flight Controller Firmware: AXISFLYING_F405AIOELRS
• ESC Firmware: F-H-40-Bluejay, 0.19
