Feature：

1. The PCB adopts high-end 8-layer 2oZ thickened copper sheet, high-end resin plug hole PCB production process, dual pad design, stronger overcurrent capacity, and good heat dissipation.

2. MOS adopts imported 40V high current withstand MOS, with long service life and strong load capacity.

3. Adopting industrial grade LDO, resistant to high temperature.

4. Adopting high-quality Japanese Murata capacitors with strong filtering performance

  Specifications：

Brand: HAKRC

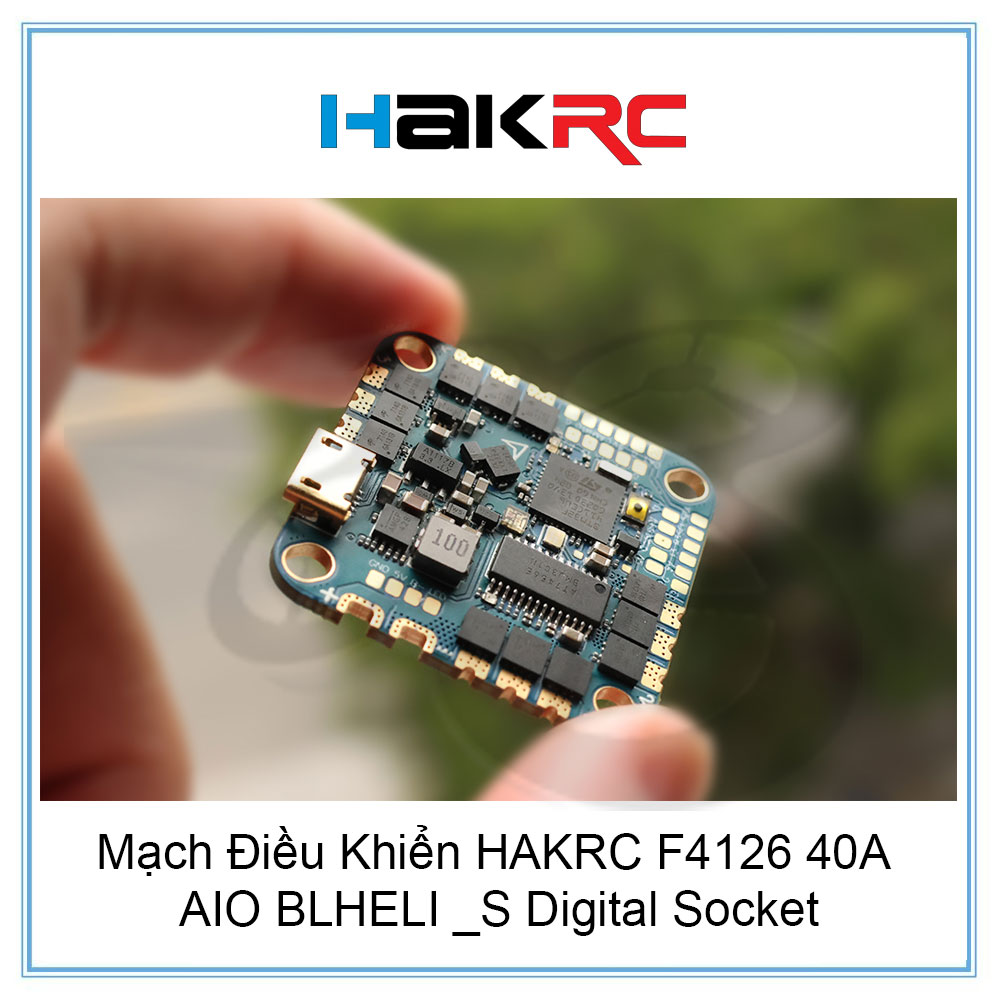

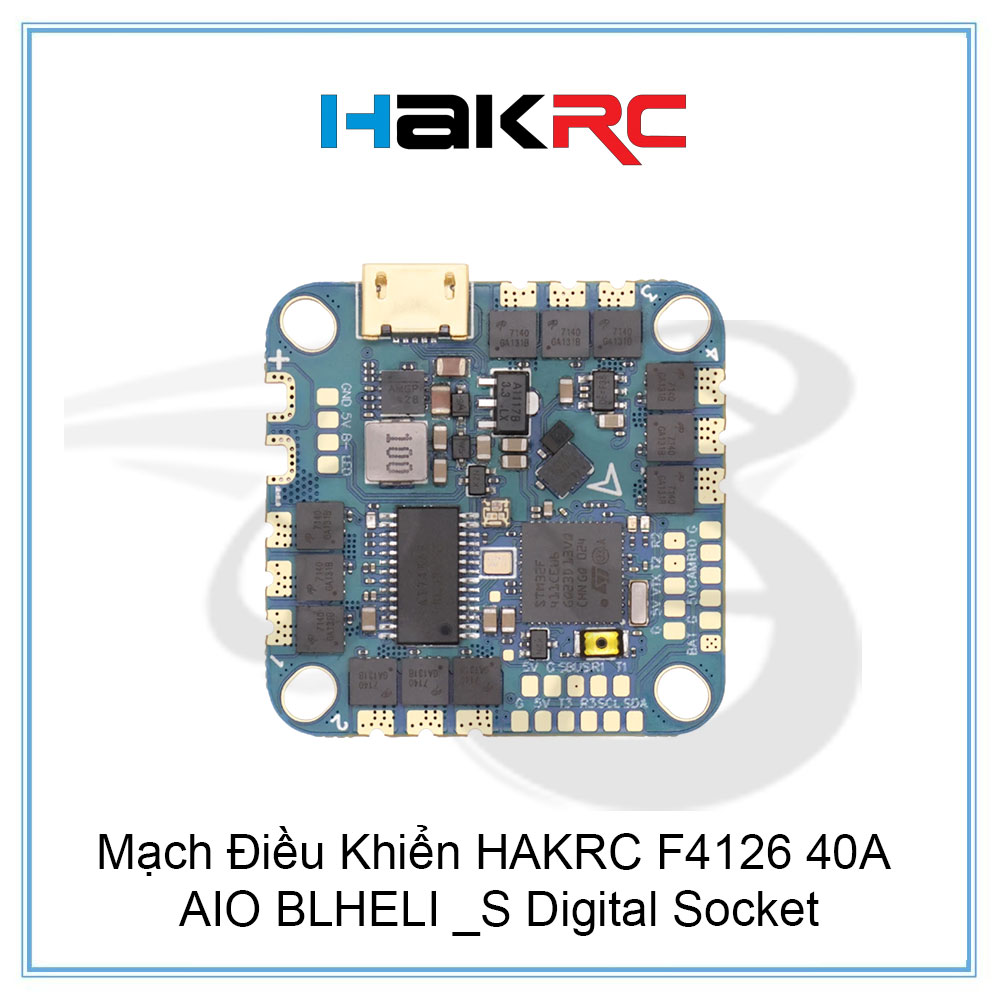

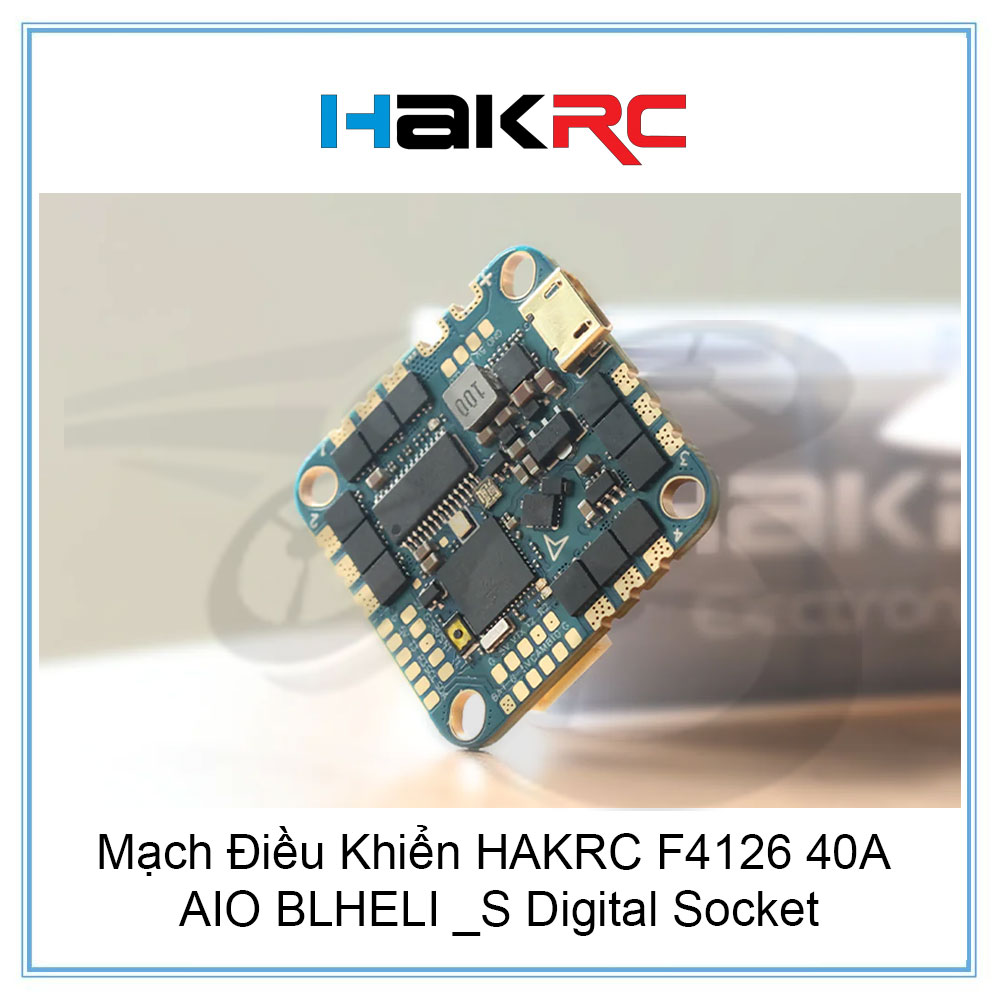

Item Name: HAKRC F4126 40A AIO

Mounting Hole: 25.5*25.5mm/26.5*26.5mm

Weight: 8.5g

Package weight: 50g

Size: 31*31mm

Flight Controller:

CPU: STM32F411CEU6

IMU: ICM42688

OSD: AT7456E

Barometer: SPL06

LED: Suppotr programmabled such as WS2812

Current meter: Yes

Firmware: HAKRC F411D

Support receiver: Frsky/ Futabas/ Flysky/ TBS Crossfire/ DSMX:DSM2

ESC:

Firmware: BLHELI_ S (G- H-30)

Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150，Dshot300，Dshot600

Input: 2S-6S Lipo

Con. Current: 40A

Peak Current: 45A

Package Included:

1x F4126 AIO

4x M2 Shock absorber

1x XT30 power cord

1x Small bandage

1x Type-C USB

1x USB cable

1x 270uf/35V capacitor

1x DJI FPV Cable

1x DJI O3 Air Unit 3-in-1 Cable

1x Instructions
