Summary

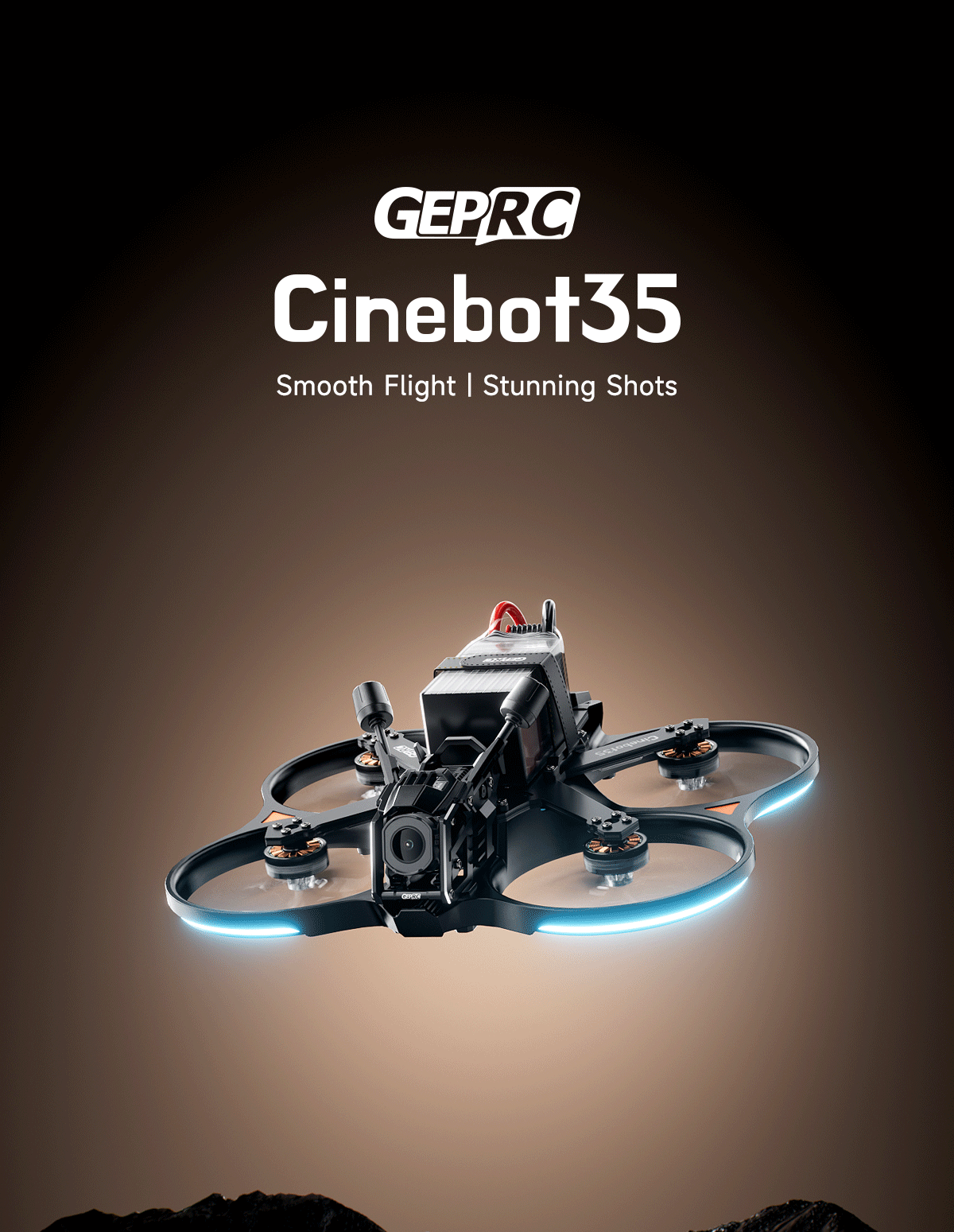

The all-new Cinebot35 is not just an evolution in size — it represents a complete integration of advanced flight concepts.

Designed for both professional cinematic shooting and daily freestyle flying, GEPRC engineers have developed a brand-new solution that balances power, stability, and versatility.

Powered by the latest TAKER H743 Mini Flight Controller, H60 32-bit 60A ESC, and 2105.5 / 2450KV motors, Cinebot35 delivers strong, responsive, and aggressive throttle performance — ensuring every punch-out is precise and powerful.

Continuing the suspended vibration-damping design from the Cinebot25V2, Cinebot35 features an independent HD camera mounting system, allowing VTX modules to be shared across different models, making maintenance simpler within a highly integrated structure.

Cinebot35 marks a new stage of professional imaging and high-efficiency flight performance.

Feature

6-Point Suspended Vibration-Damping Independent HD Camera Unit

New Power System: TAKER H743 FC + H60 Mini ESC + 2105.5/2450KV Motors

Equipped with DJI O4 Air Unit Pro (O4 Version)

Fully Optimized Frame Structure with High-Coverage Electronics Bay

Dedicated Function Board: Anti-Spark, Buzzer, LED BEC, USB Tuning Port

Protective Front Canopy to Safeguard DJI O4 Air Unit Pro

Includes Dedicated Action Camera Mount

Specifications

Model: Cinebot35 WTFPV Version

Frame: GEP-CT35

Main Plate Thickness: 3.5 mm

Bottom Plate Thickness: 1.5 mm

Wheelbase: 167 mm

Flight System: TAKER H743 Flight Controller + H60 Mini ESC

MCU: STM32H743

Gyro: ICM42688-P (SPI)

Flight Controller Firmware: GEPRC_TAKER_H743MINI

Flash: 16 MB

ESC: H60 Mini 32-bit

Motor: SPEEDX2 2105.5 / 2450KV

Propeller: HQProp D-T90MM ×3

Battery Connector: XT60

VTX: None

Camera: None

Antenna: None

Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G

Weight (ELRS 2.4G Version): 323 g ±5 g

GPS: GEP-M10Q

Recommended Battery: 6S 1300mAh – 6S 1550mAh

Flight Time: 10–11 minutes

(Tested with slow cruising flight. Actual flight time may vary depending on flying style.)

Includes

1 × Cinebot35 Quadcopter

4 × HQProp D-T90MM (Pairs)

1 × 15*150mm Battery Strap

1 × L-Shaped 1.5mm Hex Wrench

1 × Spare Screw Pack

1 × Anti-Slip Battery Pad

1 × Binding Plug

4 × Rear Landing Pads

2 × Front Bottom Landing Pads

1 × Front Top Cover

2 × O4 Antenna Mounts

2 × Acrylic Plates

3 × Damping Balls

Spare Screw Kit Includes

2 × Rivet Nuts

4 × M2*4 Button Head Hex Screws

3 × M2*10 Button Head Hex Screws

4 × M2*7 Button Head Hex Screws

3 × M2*6 Button Head Hex Screws

2 × M2*10 Socket Head Screws
